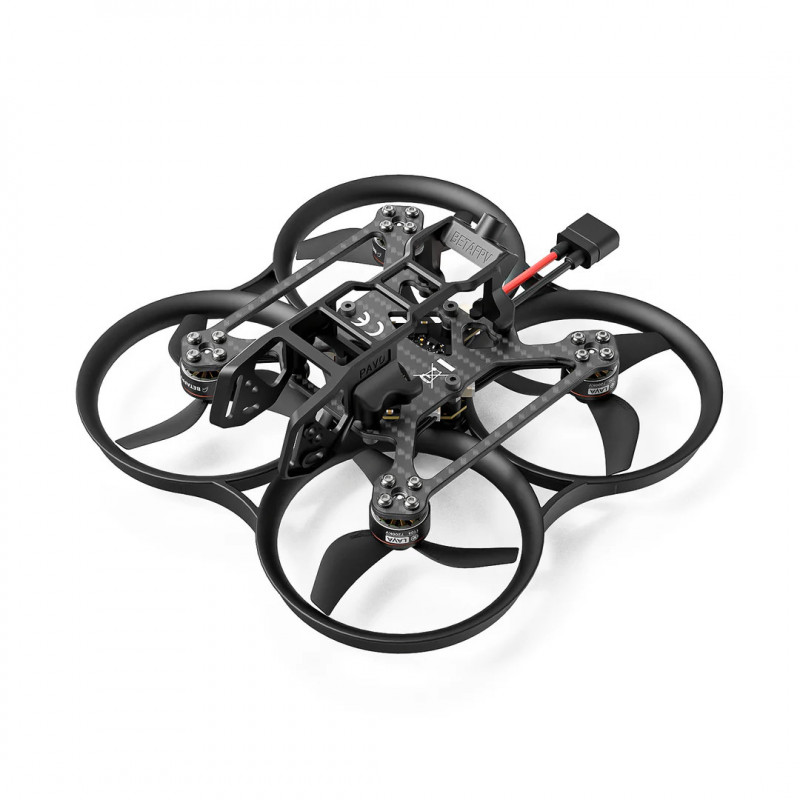

Pavo20 Pro Brushless Whoop Quadcopter O3 Version (no O3)

Elevate Your FPV Experience with the Pavo20 Pro

Introducing the Pavo20 Pro, a revolutionary 2-inch brushless whoop quadcopter designed to elevate your FPV experience. Building upon the success of the Pavo20, this quadcopter features an enhanced propulsion system and a robust frame design, delivering exceptional performance for both indoor and outdoor cinematic shots.

Key Features and Improvements:

• Enhanced Propulsion: Equipped with the F4 2-3S 20A AIO FC V1 flight controller and 1102 | 14000kv motors, the Pavo20 Pro delivers powerful and responsive flight.
• Innovative Frame Design: The whoop duct has been redesigned to enhance thrust and incorporate slots for both analog and HD VTX mounting. The lens protection bar efficiently shields the camera lens, allowing for carefree flying.
• Optimized Battery Slot: The newly designed lowerable battery slot and VTX mounting bracket reduce the overall center of gravity, improving flight maneuverability.
• Extended Flight Time: With a 2S 450mAh 45C battery, enjoy up to 4 minutes of stable and extended flight time, perfect for capturing cinematic footage.
• Injection-Molded Canopy: The high-quality injection-molded canopy ensures a stable and high-definition output image, enhancing your FPV experience.
• HD VTX Compatibility: Designed to accommodate various HD VTX systems, including the Walksnail Avatar HD Pro, RunCam Link, and CADDX Vista.

Bullet Points:

• A newly designed lowerable battery slot and VTX mounting bracket. Lowers the drone's overall center of gravity and improves the flight experience.
• The whoop duct has been redesigned to enhance thrust, while slots are added on both sides of the duct to allow the simultaneous mounting of both analog and HD VTX.
• The lens protection bar efficiently shields the camera lens, allowing for carefree flying.
• The F4 2-3S 20A AIO FC V1 flight controller features the AT32F435, with a high main frequency of 460MHz, significantly improving operational capabilities.
• 4 minutes of stable and extended flight time with a 2S 450mAh 45C battery.
• Equipped with 1102 | 14000kv motors, delivering even stronger power, a perfect choice for both indoor cinematic shots and outdoor rips.
• The high-quality injection-molded canopy, with a stable and high-definition output image, enhances the FPV experience.

Specification:

• Item: Pavo20 Pro Brushless Whoop Quadcopter
• Color: Black
• Flight Time*: 4min
• Wheelbase: 87.7mm
• FC: F4 2-3S 20A AIO FC V1
• Battery Connector: BT2.0
• Props: GF 2015 2-Blade Prop Black
• Motor: 1102 | 14000kv
• Weight (Without HD VTX & Battery): 75.75g
• Frame: Pavo20 Pro Brushless Whoop Frame
• Canopy: Pavo Series Black Canopy
• VTX Mounting Hole Size: 20*20mm/25*25mm
• Camera Mount Size: 14mm/19mm
• HD VTX: Support Walksnail Avatar HD Pro, RunCam Link, CADDX Vista Kit Installation.
• Recommend Battery: 2S 450mAh 45C

*Note: The flight time is calculated under an HD VTX and battery. Without the above installed, the flight time can reach about 6min.

Source: Pavo20 Pro Brushless Whoop Quadcopter on BetaFPV
