DAKEFPVF405 F7 V3 50A 30x30 Stack - Flight Controller & ESC Combo
ê 259.00
ê 220.15
Save 15%
Delivery to Dubai in 2-3 days, other emirates, 3-5 days

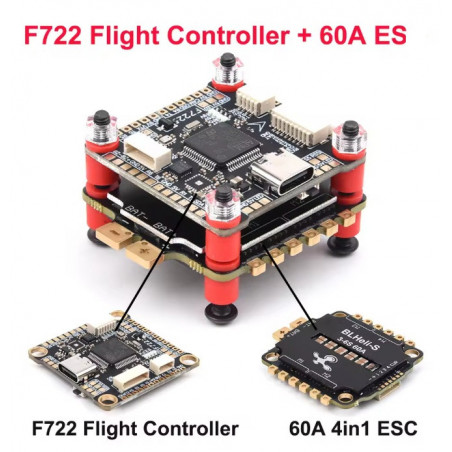

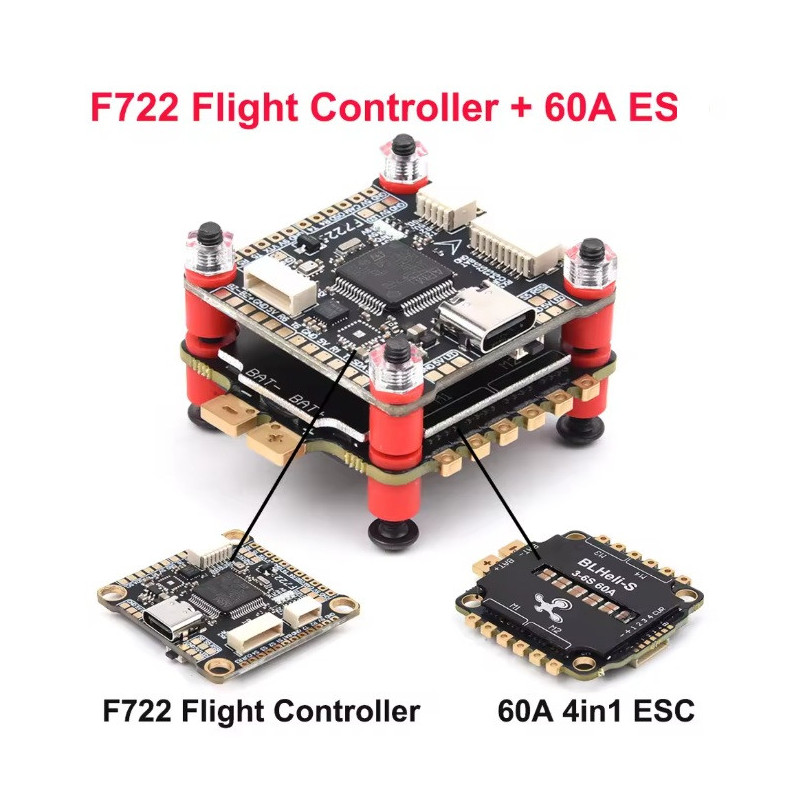

Experience seamless FPV performance with the F7 V3 60A Stack. This powerful combo features an F722 flight controller with a high-performance Mpu6500/ICM42688 gyro and a robust 60A BLHeli_32 4-in-1 ESC. Tune your quad wirelessly on the go with its built-in Bluetooth, making it the perfect brain for any high-performance FPV drone.
F7 Flight Controller Specifications:
MCU: STM32F722RET6 216MHz
Gyroscope: Mpu6500/ICM42688 (send at random)
Baro:DPS310/ SPL06-001/LQTP001HTA (send at random )
OSD: Betaflight SPI OSD DJI HD OSD(UART5)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 12V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)
1x JST-SH1.0_6pin connector (12V/GND/T5/R5/GND/R2)
VTX 12V filtered power
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver,
The default receiver input is UART2(You can solder ELRS RX on UART2), F7 has a built-in inverter, which can actually be installed in any spare UART.
Power:
Input voltage: 3-6S
BEC: 5V/12V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.1A
FC Firmware:
BetaFlight firmware:DAKEFPVF722
INAV firmware:DAKEFPVF722
Mounting:
Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 36mm × 36mm
Flight control weight: 6.9g
Flight control onboard voltage sensor.
SB-F7V3-50A-STACK
