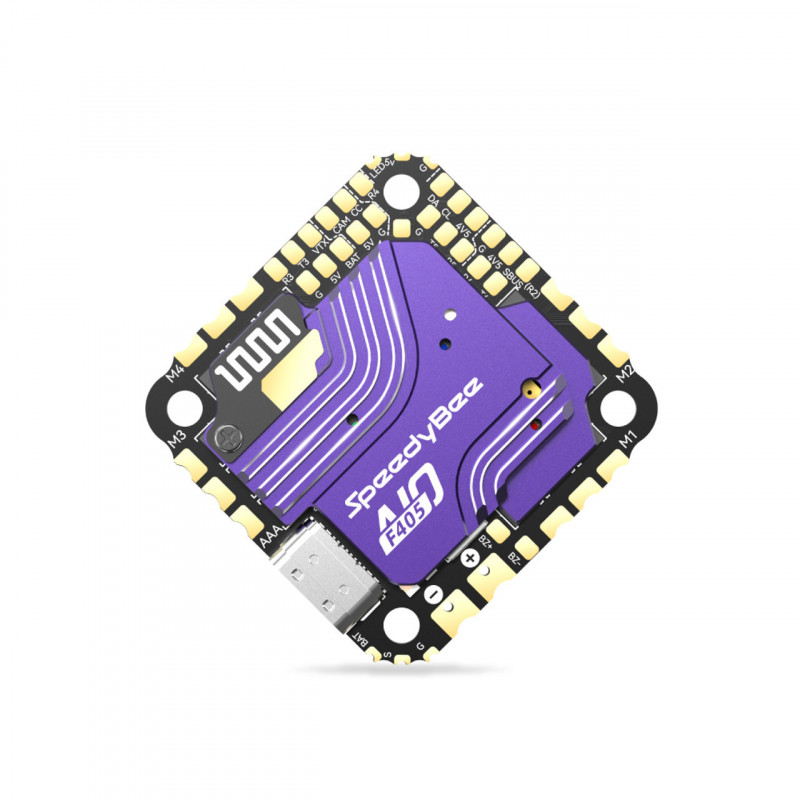

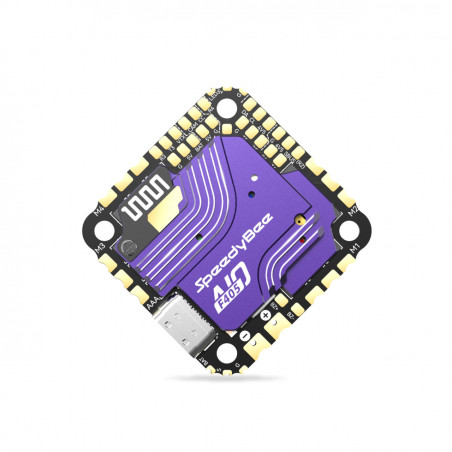

SpeedyBee F405 AIO Flight Controller with 40A ESC

The SpeedyBee F405 AIO is a powerful and cost-effective flight controller solution for your FPV drone. This board combines a robust F405 flight controller with a high-performance 40A ESC, all in a compact 25.5x25.5mm form factor.

Key Features:

• MCU: STM32F405, 168MHz
• IMU(Gyro): BMI270
• USB Port Type: Type-C
• Barometer: Built-in
• OSD Chip: AT7456E
• BLE Bluetooth: Supported. Used for Flight Controller configuration
• Flash FC Firmware Wirelessly: Supported. Please connect to SpeedyBee App via Bluetooth.
• Blackbox: 8MB Onboard Flash
• Current Sensor: Supported, Scale=256
• BetaFlight Camera Control Pad: Yes (CC pad)
• Power Input: 3S - 6S Lipo
• Power Output:
  • 4.5V * 2 (The maximum load current is 250mA)
  • 3.3V * 1(The maximum load current is 500mA)
  • 9V * 1 (The maximum load current is 2.5A)
  • 5V * 4 (The maximum load current for each is 1A, 4 x 5V pads share the total 2.5A current load.)
• ESC: 40A, 4 Output
• Firmware: Bluejay G-H-40 0.19 48kHz
• Mounting: 25.5 x 25.5mm, 3.05mm hole diameter
• Dimensions: 32 x 32 x 7.8mm
• Weight: 9.3g

ESC Specifications:

• Firmware: Bluejay G-H-40 0.19 48kHz
• Continuous Current: 40A
• Burst Current: 50A (5 seconds)
• Protocol: DSHOT300/600
• Power Input: 3-6S LiPo
• Power Output: VBAT
• Current Sensor: Support (Scale=256)
• Mounting: 25.5*25.5mm (3.05mm hole diameter)

Package Includes:

• 1 x SpeedyBee F405 AIO Flight Controller
• 5 x M3*8mm Silicone Grommets (for FC)
• 1 x SH 1.0mm 15mm-length 8pin Cable (for FC-ESC connection)
• 5 x M3*30mm Screws
• 5 x M3 Silicone O-rings
• 5 x M3 Nylon Nuts
• 1 x 35V 470uF Low ESR Capacitor
• 1 x XT30 Power Cable (70mm)

For more information and support, please visit the original product page: SpeedyBee F405 AIO
