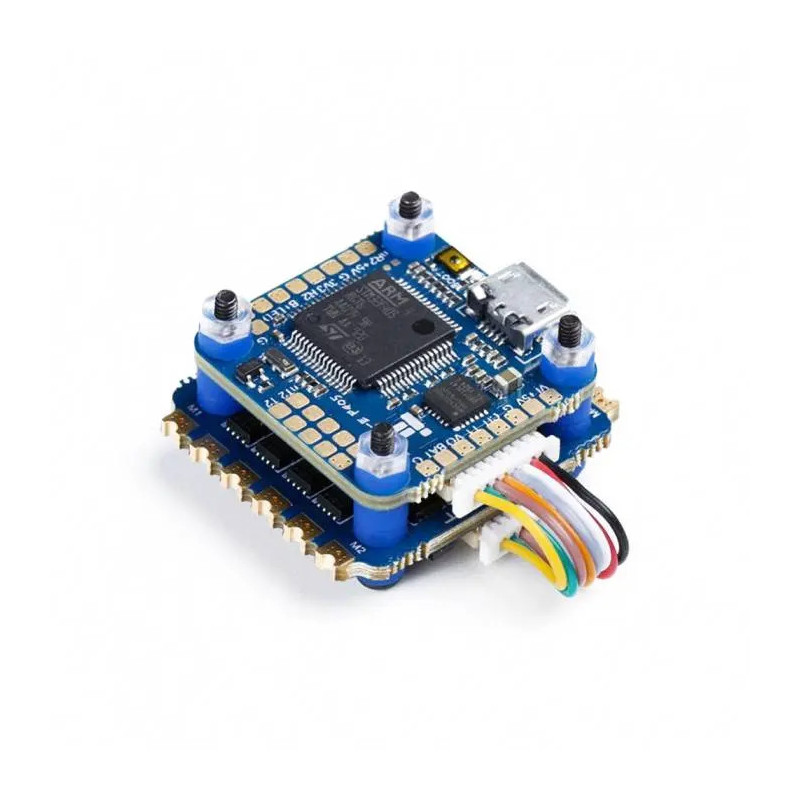

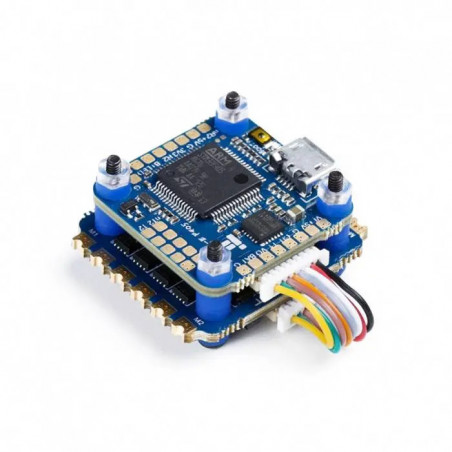

iFlight SucceX-E Mini F4 Flight Controller Stack with 35A 2-6S 4-in-1 ESC (MPU6000)

Compact Power for Your FPV Build

The iFlight SucceX-E Mini F4 Stack is a high-performance, 20x20mm mounting solution designed for FPV drone builders who demand power and reliability in a compact form factor. This stack pairs the versatile SucceX-E Mini F4 Flight Controller with the robust SucceX-E Mini 35A 4-in-1 ESC, providing a seamless and powerful core for your quadcopter.

Featuring an STM32F405 MCU, the popular MPU6000 gyro for clean flight performance, and 8MB of onboard Blackbox storage, this flight controller is ready for any challenge. The 35A 4-in-1 ESC supports 2-6S LiPo input and runs on reliable BLHeli_S firmware, ensuring smooth and responsive motor control.

Key Features:

• STM32F405 MCU for high-speed processing
• MPU6000 Gyro for stable and reliable flight data
• Onboard 8MB Blackbox for flight log recording and tuning
• 4 UARTS for connecting peripherals
• Powerful 35A 4-in-1 ESC with BLHeli_S firmware
• Supports 2-6S LiPo battery input
• Compact 20x20mm mounting pattern

Specifications

SucceX-E Mini F4 Flight Controller

• MCU: 168MHz STM32F405
• Gyro: MPU6000
• Blackbox: 8MB
• OSD: Betaflight OSD (AT7456E)
• BEC: 5V 2.5A
• Uarts: 4
• ESC Telemetry: Yes
• INA Pad: nuart2
• Input voltage: 2-6S
• Firmware: BETAFLIGHTF4
• Size: 27x27mm
• Mounting pattern: 20x20mm, φ3mm holes

SucceX-E Mini 35A 4-in-1 ESC

• MCU: BB21 F16G
• Firmware: BLHeliS
• Current Sensor: Yes
• Input: 2-6S LIPO
• Constant Current: 35A
• Burst Current: 40A
• BEC: No
• ESC Telemetry: No
• Target: G-H-30
• Dimensions: 31x30mm
• Mounting Holes: 20x20mm, φ3mm holes
• Weight: 6.9g

Package Includes:

• 1 x SucceX-E Mini F4 Flight Controller
• 1 x SucceX-E Mini 35A 4-in-1 ESC
• 1 x Set of wiring harnesses and connectors
• 1 x Set of mounting hardware (standoffs, screws, gummies)
