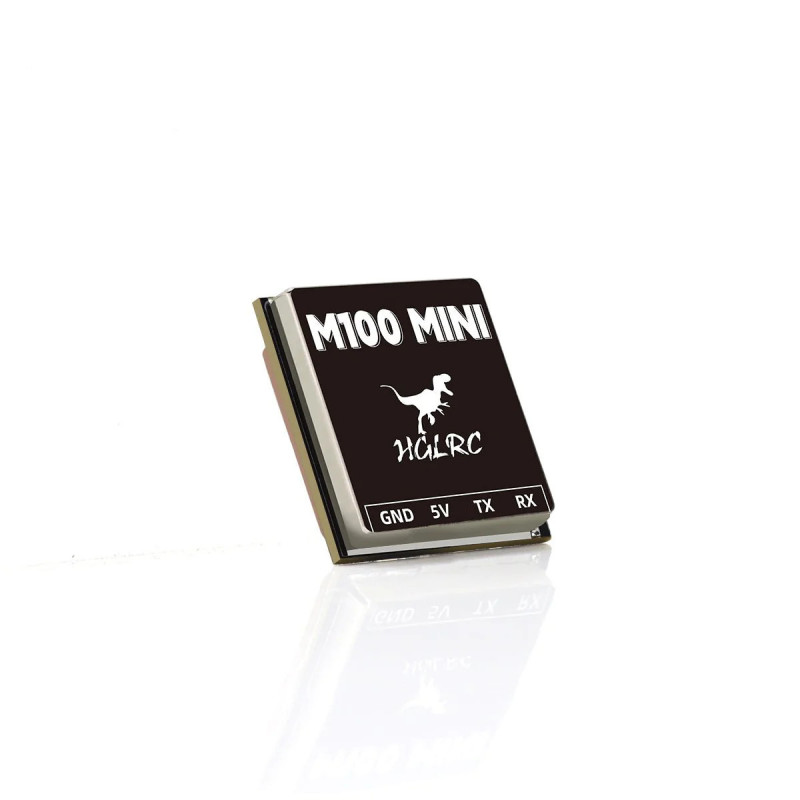

HGLRC M100-MINI GPS Module for FPV Drone

HGLRC M100-MINI GPS Module for FPV Drones

The HGLRC M100-MINI GPS is an ultra-compact and lightweight GPS module designed for use in FPV drones, offering exceptional performance in a small form factor.

Key Features:

• New Generation GNSS M10: Equipped with the latest M10 chip, supporting GPS, BDS, GALILEO, and SBAS satellite systems for accurate positioning.
• Fast and Stable Performance: Provides quick and reliable satellite acquisition for a stable flight experience.
• Built-in Farad Capacitor: Enables faster hot starts, reducing the time to acquire satellite signals after power-up.
• Compact and Lightweight: Weighing only 2.6g and measuring 15mm x 15mm x 5.5mm, it's ideal for small and lightweight drone builds.
• Easy Integration: Simple wiring and configuration make it easy to integrate into your drone's flight control system.

Specifications:

• Chip: M10 (M10050)
• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Input Voltage: 3.3V-5V
• Antenna: Ceramic Antenna
• Receiving Channels: 72CH
• Compass: None
• Baud Rate: 115200bps
• Output Protocol: UBLOX (default) / NMEA
• Output Frequency: 1Hz-10Hz (default 10Hz)
• Speed Accuracy: 0.05 m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5m (open sky)
• Receiving Sensitivity: Trace -166dBm; Capture -160dBm
• Dynamic Characteristics: Max Height: 50000m; Max Speed: 500m/s; Max Acceleration: 4G
• Size: 15mm x 15mm x 5.5mm
• Weight: 2.6g

Package Includes:

• 1x HGLRC M100-MINI GPS Module
• 1x SH1.0 4pin 100mm Cable

For more information and technical support, please visit the original product page: HGLRC M100-MINI GPS
