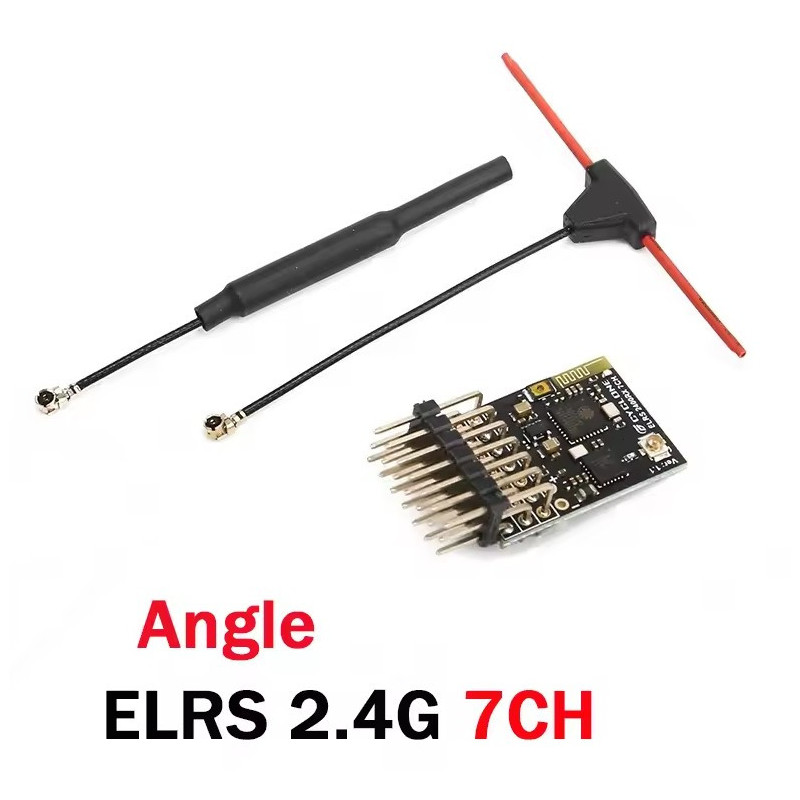

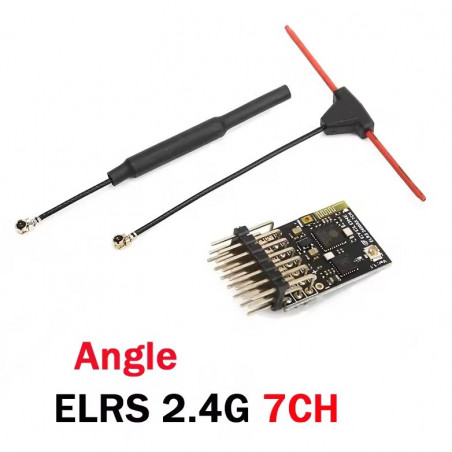

Cyclone ELRS 2.4G 7-Channel PWM/CRSF Receiver

Unleash Long-Range Performance with the Cyclone ELRS 2.4G Receiver

Experience a new level of control and reliability with the Cyclone ELRS 2.4G Receiver, designed for the modern FPV pilot and RC enthusiast. This compact and lightweight receiver is built on the powerful ExpressLRS 3.2 firmware, offering an incredibly robust and low-latency link for your FPV drones, fixed-wing aircraft, and other RC models. With its versatile output options, it seamlessly integrates into any setup, whether you're using a modern flight controller or traditional servos.

Key Features:

• Dual Protocol Support: Offers both 7-channel PWM output for direct servo connection and CRSF output for modern flight controllers, providing maximum flexibility.
• ExpressLRS 3.2 Firmware: Pre-flashed with the latest ELRS firmware for outstanding range, telemetry, and low-latency performance.
• High-Performance Antenna: Equipped with a high-sensitivity copper pipe T-type antenna to ensure a stable and long-range signal link.
• Compact & Lightweight: With a minimal footprint and weighing only a few grams, it's perfect for builds where every gram counts.
• Wide Voltage Input: Supports a wide input voltage range from 4.5V to 8.4V, making it compatible with various power sources.

Specifications:

• Item: CYCLONE ELRS 2.4G PWM Receiver
• MCU: ESP8285
• RF Chip: SX1281
• Frequency Band: 2.4GHz ISM
• Firmware Target: DIY 2.4 GHz / DIY_2400_RX_PWMP
• Protocol: PWM (7-Channel) & CRSF
• Input Voltage: 4.5V - 8.4V
• Antenna Connector: IPEX1
• Antenna Type: High-sensitivity T-type copper pipe antenna
• Weight: 2.5g (receiver only)
• Dimensions: 25mm x 15mm x 5mm

Package Includes:

• 1 x Cyclone ELRS 2.4G PWM/CRSF Receiver
• 1 x T-type Copper Pipe Antenna
• 1 x Pin Header Set
