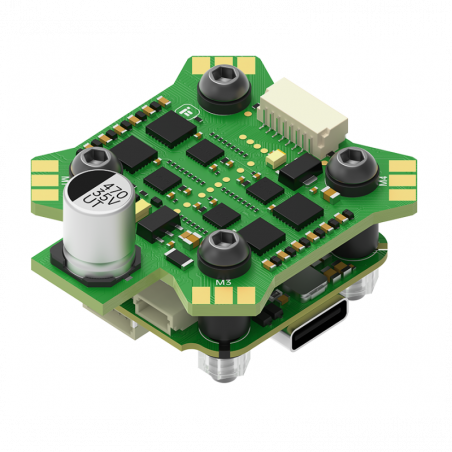

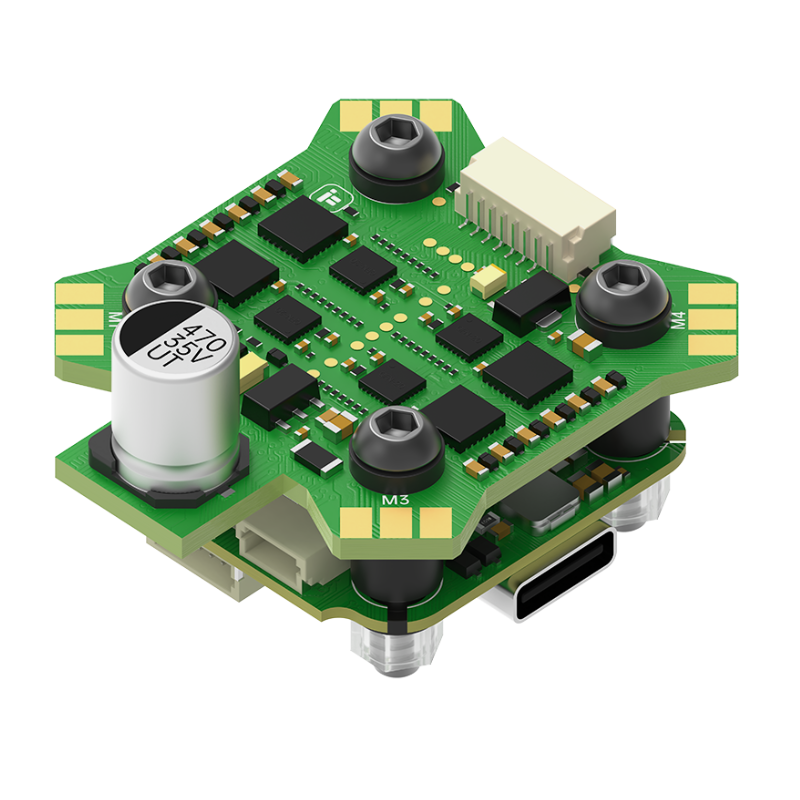

iFlight BLITZ ATF435 Flight Controller & E55S 55A 4-in-1 ESC Stack

iFlight BLITZ ATF435 Flight Controller & E55S 55A 4-in-1 ESC Stack

Elevate your FPV experience with the iFlight BLITZ ATF435 Stack, a powerful combination of the BLITZ ATF435 Flight Controller and the BLITZ E55S 55A 4-IN-1 ESC. Designed for demanding FPV freestyle and racing drones, this stack supports 2-6S LiPo batteries and delivers exceptional performance and reliability.

Key Features:

• High-Performance MCU: The ATF435 microcontroller on the FC ensures rapid processing for smooth and responsive flight control.
• Robust ESC: The E55S 4-in-1 ESC handles up to 55A continuous current (65A burst), providing ample power for aggressive maneuvers.
• Wide Voltage Range: Compatible with 2-6S LiPo batteries, offering versatility for various drone builds.
• Onboard Blackbox: 16MB Flash for Blackbox logging to help you tune and troubleshoot.
• Clean Power Delivery: Features dedicated BEC outputs (5V/2.5A and 10V/2A) for powering peripherals like VTX, camera, and receiver.
• Multiple UARTs: Equipped with 6 UARTs for connecting GPS, VTX control, receiver, and other devices.
• User-Friendly Design: Standard 30.5x30.5mm mounting pattern for easy installation in most FPV frames.
• Integrated OSD: AT7456E OSD chip for displaying crucial flight information directly on your FPV feed.

BLITZ ATF435 Flight Controller Specifications:

• MCU: ATF435
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456E
• Blackbox: 16MB Onboard Flash
• BEC Output: 5V 2.5A / 10V 2A
• UARTs: 6
• HD VTX Connector: DJI VTX / Vista / Nebula (Plug-and-Play)
• USB Port: Type-C
• Input Voltage: 2-6S LiPo (7.4V-26V)
• Firmware Target: IFLIGHT_BLITZ_ATF435
• Mounting Pattern: 30.5x30.5mm / Φ4mm
• Dimensions: 36.5x35 mm
• Weight: 7.8g (approx.)

BLITZ E55S 4-IN-1 2-6S ESC Specifications:

• Input Voltage: 2-6S LiPo
• Max. Continuous Current: 55A
• Max. Burst Current: 65A
• MCU: BB21
• BEC: No (Power supplied by FC or separate BEC)
• Current Sensor: Yes (Scale: 200)
• Telemetry: Supported
• Firmware: BLHeli_S
• Target: G-H-30 BLS
• Mounting Pattern: 30.5x30.5mm / Φ4mm
• Dimensions: 42x40mm
• Weight: 15.3g (approx.)

Package Includes:

• 1 x BLITZ ATF435 Flight Controller
• 1 x BLITZ E55S 4-IN-1 55A ESC
• 1 x Set of silicone grommets
• 1 x FC to ESC wiring harness (SH1.0 8pin)
• 1 x XT60 Power Cable (may vary)

Note: Specifications are based on typical product listings and may vary slightly. Always refer to the manufacturer's official documentation for the most accurate information.
