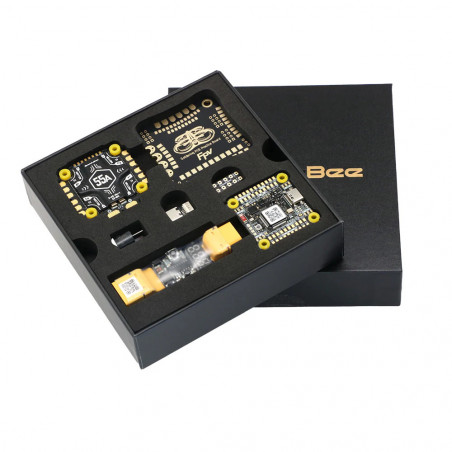

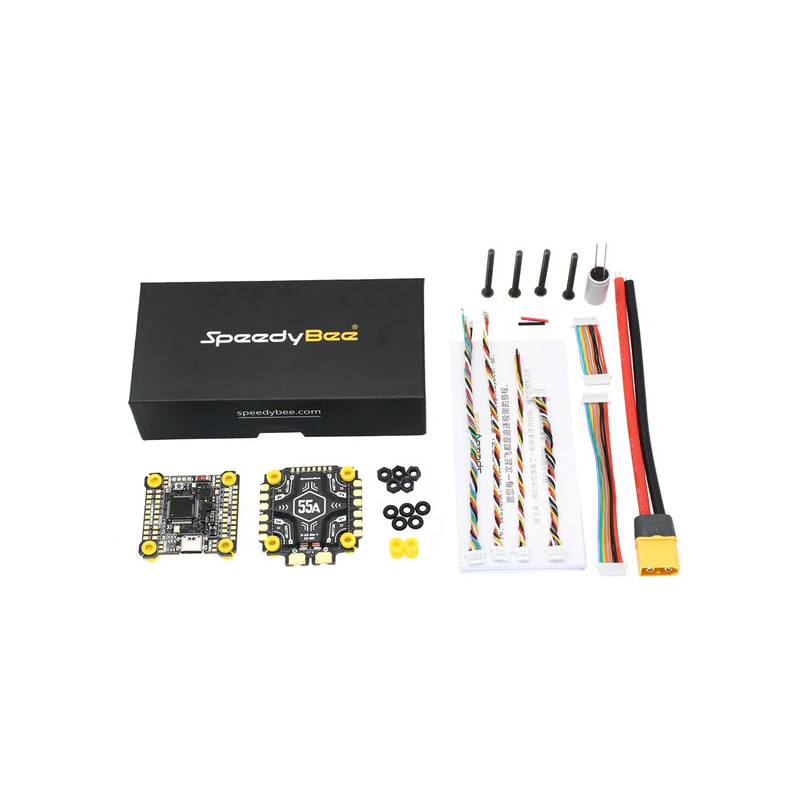

Speedybee F405 V5 55A Stack F405 V5 FC & OX32 4-in-1 55A ESC
ê 408.00
ê 346.80
Save 15%
Delivery to Dubai in 2-3 days, other emirates, 3-5 days
The Speedybee F405 V5 is a flight controller and ESC stack designed for performance with features like a powerful F405 MCU, a low-noise ICM42688P gyro, and built-in Bluetooth for wireless tuning via the SpeedyBee app. It supports 3-6S LiPo batteries, has 16MB of blackbox storage, a dedicated DJI Air Unit connector, multiple BECs, and is compatible with both analog and digital FPV systems. The stack is ideal for freestyle, racing, or cinematic builds and includes an OX32 55A ESC with a 1000µF capacitor and TVS protection
HTML
SpeedyBee F405 V5 30.5×30.5mm Flight Controller
Core Components
- Product Name: SpeedyBee F405 V5 30.5×30.5mm Model Aircraft Flight Controller
- MCU: STM32F405
- IMU (Gyro): ICM42688P
- Barometer: SPA06-003
- OSD Chip: AT7456E
- Blackbox: 16MB Onboard Flash
Connectivity & Features
- USB Port Type: Type-C
- Bluetooth: Supported. Full-featured tuning via SpeedyBee App.
- Wireless FC Firmware Upgrade: Supported
- DJI Air Unit Connection: Supports 6-pin direct plug-in or solder connection.
- I2C: Supported (GPS connector + pads)
- Buzzer Pads: Supported
- RSSI Pads: Supported
- SmartPort: Not supported
- BOOT Button:
- [A] Hold while powering on to force DFU mode.
- [B] When powered, short-press cycles LED modes; long-press switches between SB-LED/ST-LED.
Power Outputs
- Input Voltage: 3-6S LiPo
- 9V BEC Output: 2 groups, 3A total output. Supports PINIO remote on/off.
- 5V BEC Output: 9 groups, 1.5A total output.
- 4.5V Output: 3 groups, 1A max output (for receiver/GPS via USB power).
- 3.3V Output: 1 group.
Signals & UARTs
- ESC Signal: M1-M4 pads and 10-pin connector.
- Servo Signal: S5-S6 pads.
- ESC Telemetry Input: Supported (UART5)
- Betaflight Camera Tuning Pad: Supported (CC pad)
- UART Ports:
- UART1: Bluetooth
- UART2: Receiver
- UART3: DJI VTX
- UART4: GPS
- UART5: ESC Telemetry
- UART6: Receiver
LEDs
- ST LED Pads: Supported (G/5V/LED pads), controlled by FC firmware.
- Meteor LED Strip Pads: Supported. Switchable between SB-LED (ESP32 control) and ST-LED (FC control) modes.
Firmware
- Supported FC Firmware: Betaflight, INAV, Ardupilot
- Firmware Target Name: SPEEDYBEEF405V5
- Factory Firmware: Betaflight 4.5.2
- Configurator Version: Betaflight 10.10.0
Physical Specifications
- Mounting: 30.5 × 30.5mm (Ø4mm holes)
- Dimensions: 39mm (L) × 39mm (W) × 4.9mm (H)
- Weight: 8.1g
SpeedyBee OX32 55A 30.5×30.5 4-in-1 ESC
Performance
- Product Name: SpeedyBee OX32 55A 30.5×30.5 4-in-1 ESC
- Default Firmware: OX32
- Continuous Current: 55A per channel (220A total)
- Maximum Current: 70A per channel (280A total)
- Input Voltage: 3-6S LiPo
- ESC/Motor Protocol: DSHOT300/600
Features
- TVS Protective Diode: Yes (built-in)
- External Capacitor: 1000µF Solid Capacitor (included)
- Power Output: VBAT
- Current Sensor: Supported (Scale=27, Offset=-2644)
- ESC Telemetry: Supported
- ESC Webpage: https://ox32.oxbot.com/
Physical Specifications
- Mounting: 30.5 × 30.5mm (Ø4mm holes)
- Dimensions: 40.9mm (L) × 44.9mm (W) × 8.0mm (H) (incl. heatsink)
- Weight: 19.1g
SPEEDYB-F405-V5-55A-STCK-STD
Data sheet
- Voltage
- 3S (11.6V)
4S (15.2V)
5S (19.0V)
6S (22.8V) - Mounting
- 30.5x30.5mm
- Max Amp
- 55
