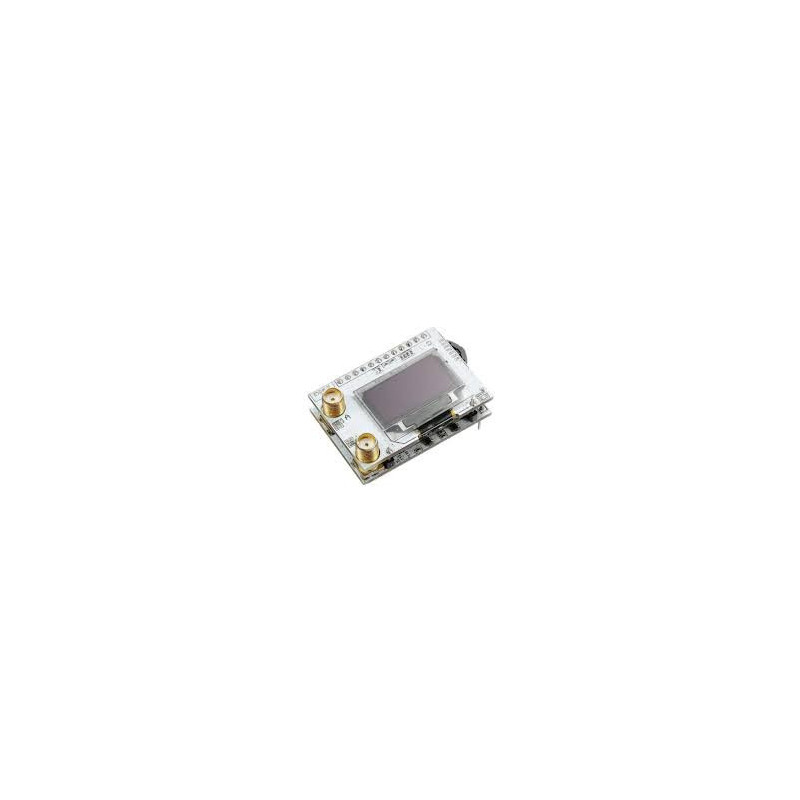

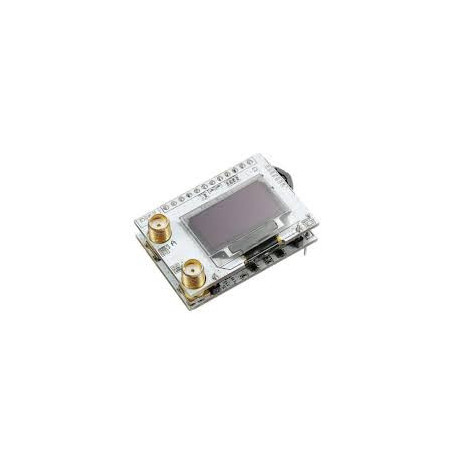

Eachine PRO58 RX 5.8G 40CH Diversity FPV Receiver Module for Fatshark Goggles

Upgrade Your FPV Experience with the Eachine PRO58 Diversity Receiver

Experience a crystal-clear and reliable video feed with the Eachine PRO58 RX, a high-performance 5.8GHz diversity receiver module designed to seamlessly integrate with your Fatshark Dominator series goggles. Featuring true diversity technology, the PRO58 constantly switches between two antennas to lock onto the strongest possible signal, dramatically reducing video dropouts and multi-pathing issues. The bright OLED screen and intuitive jog wheel make channel selection and scanning effortless, so you can spend less time tuning and more time flying.

Key Features:

• True Diversity System: Utilizes two independent receiver modules to ensure the best possible signal reception, minimizing glitches and maximizing range.
• OLED Display: A clear and bright screen displays the current channel, band, signal strength (RSSI), and menu options for easy navigation.
• 40 Channels with Raceband: Full coverage of 5 bands, including Raceband, ensuring compatibility with virtually any 5.8G video transmitter.
• One-Key Channel Scan: Quickly find the strongest signal in your area with the built-in spectrum scanner.
• Easy Control: A simple and effective jog wheel allows for quick scrolling through channels and menus.
• Custom Firmware Ready: Unlock advanced features and improved performance by flashing popular open-source firmware like Achilles or Pirx.
• Perfect Fit: Includes a custom-molded case cover for a clean, professional installation in Fatshark Dominator V1, V2, V3, HD1, HD2, HD3, and HDO goggles.

Specifications:

• Brand: Eachine
• Item Name: PRO58 RX Diversity Receiver
• Frequency: 5.8GHz
• Channels: 40CH (Bands A, B, E, F, R)
• Power Consumption: 1.8-2W
• Input Voltage: 5V
• Antenna Connector: SMA Female
• Dimensions: 42 x 30 x 25mm
• Weight: 23g

Package Includes:

• 1 x Eachine PRO58 RX Diversity Receiver Module
• 1 x Custom Case Cover for Fatshark Goggles
• 1 x User Manual

Note: Antennas are not included in the standard package and must be purchased separately.
