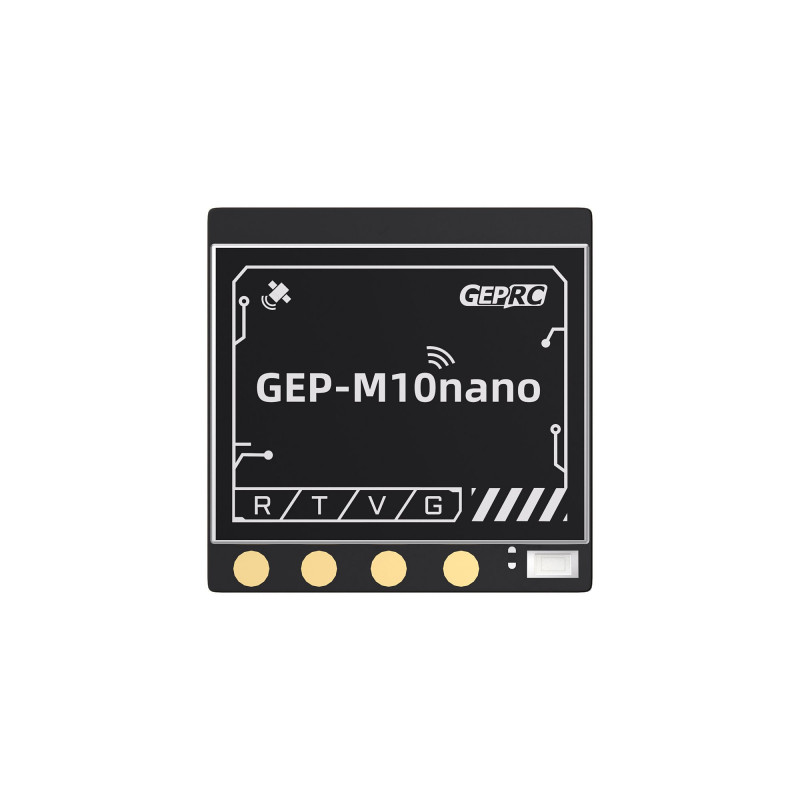

GEPRC GEP-M10 Nano M10 Series High-Precision GPS Module

Experience Unmatched Positioning with the GEPRC GEP-M10 Series GPS

The GEP-M10 series is GEPRC's latest generation of GPS positioning modules, engineered for superior performance. Featuring the advanced u-blox M10 chip, this series delivers exceptionally fast satellite acquisition and high-precision positioning, making it an ideal choice for FPV pilots and drone enthusiasts who demand reliability and accuracy.

With its ability to concurrently receive signals from four satellite constellations (GPS, Galileo, BDS, and GLONASS), the GEP-M10 ensures a stable and robust connection. Its compact design, onboard status indicator, and integrated battery for quick hot starts make it a versatile and user-friendly solution for any build.

Key Features:

• Advanced Chipset: Equipped with the high-performance u-blox M10 chip.
• Rapid Positioning: Achieves fast satellite lock and positioning speed.
• Multi-Constellation Support: Concurrently receives GPS, Galileo, BDS, and GLONASS signals for enhanced reliability.
• Stable Connection: Delivers a consistent and stable connection.
• Compact & Lightweight: Exquisite and small design, perfect for various drone sizes.
• Onboard Indicator: A power indicator and positioning status light for easy monitoring.
• Fast Hot Start: Built-in battery ensures rapid startup.

Specifications:

GEP-M10

• GPS Chip: u-blox M10
• Magnetometer: No
• Barometer: No
• Input Voltage: 3.3V-5V
• Receiving Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Operation Mode: GPS+BDS+GALILEO+GLONASS+SBAS joint positioning
• Channels: 72ch
• Baud Rate: 115200bps
• Output Protocol: UBLOX
• Output Frequency: 10Hz
• Speed Accuracy: 0.05m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5m (avg)
• Timing Accuracy: 30ns
• Max Acceleration: ≤50,000m
• Max Height: 50000m
• Max Speed: 500m/s
• Dimensions: 22mm x 22mm x 8.2mm
• Weight: 7.9g

GEP-M10-DQ

• GPS Chip: u-blox M10
• Magnetometer: QMC5883L
• Barometer: DPS310
• Input Voltage: 5V
• Receiving Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Operation Mode: GPS+BDS+GALILEO+GLONASS+SBAS joint positioning
• Channels: 72ch
• Baud Rate: 115200bps
• Output Protocol: UBLOX/NMEA
• Output Frequency: 10Hz
• Speed Accuracy: 0.05m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5m (avg)
• Timing Accuracy: 30ns
• Max Acceleration: ≤50,000m
• Max Height: 50000m
• Max Speed: 500m/s
• Dimensions: 25mm x 25mm x 8.3mm
• Weight: 9.4g

GEP-M10-Nano

• GPS Chip: u-blox M10
• Magnetometer: No
• Barometer: No
• Input Voltage: 5V
• Receiving Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Operation Mode: GPS+BDS+GALILEO+GLONASS+SBAS joint positioning
• Channels: 72ch
• Baud Rate: 115200bps
• Output Protocol: UBLOX
• Output Frequency: 10Hz
• Speed Accuracy: 0.05m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5m (avg)
• Timing Accuracy: 30ns
• Max Acceleration: ≤50,000m
• Max Height: 50000m
• Max Speed: 500m/s
• Dimensions: 15mm x 15mm x 5.5mm
• Weight: 2.5g

Package Includes:

• 1 x GEP-M10 Series GPS Module (Model of your choice)
• 1 x SH1.0 Terminal Cable (4-Pin for M10/M10-Nano, 6-Pin for M10-DQ)
• 1 x User Manual
