HGLRC M100-5883 GPS Module
ê 83.39
ê 70.88
Save 15%
Delivery to Dubai in 2-3 days, other emirates, 3-5 days

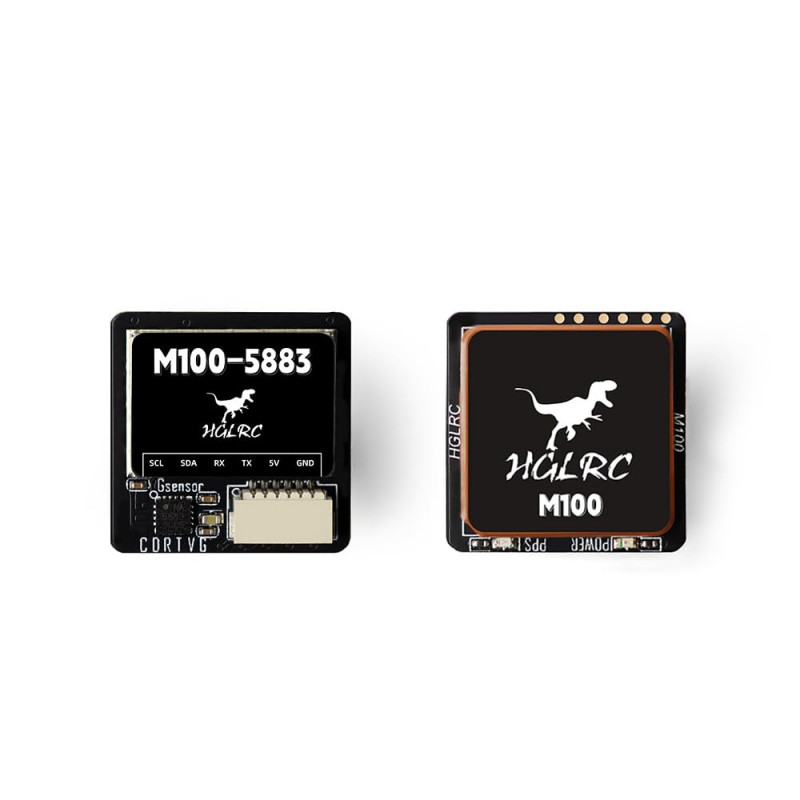

The HGLRC M100-5883 is a compact and lightweight GPS module designed for racing drones and other FPV applications. It features a high-sensitivity UBLOX M10 chip and an integrated 5883 compass.
HGLRC M100-5883 GPS Module for FPV Racing Drones
The HGLRC M100-5883 is a cutting-edge GPS module designed to elevate your FPV racing experience. Featuring the latest UBLOX M10 chip, this module delivers exceptional positioning accuracy and faster satellite acquisition. It's the perfect upgrade for pilots seeking enhanced navigation and reliable performance.
Key Features:
- Chip: UBLOX M10 (10th generation chip)
- Frequency: GPS L1GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
- Input Voltage: 5V
- Antenna: Ceramic Antenna
- Channels: 72
- Compass: QMC5883
- Baud Rate: 115200bps
- Protocol: UBLOX / NMEA (NMEA is default)
- Output Frequency: 1Hz-10Hz (10Hz is default)
- Speed Accuracy: 0.05m/s
- Horizontal Positioning Accuracy: 2D ACC1.5m (In Open Sky)
- Receiving Sensitivity: Trace-166dBm | Capture -160dBm
- Dynamic Characteristics: Max Height: 50000m | Max Speed: 500m/s | Max Acceleration: 4G
- Size: 25mm x 20mm x 8.8mm
- Weight: 8.9g
- Fast and stable satellite search
- Built-in QMC5883 compass
Package Includes:
- 1x M100-5883 GPS
- 1x 4pin Cable
LED Indicators:
- PPS LED: yellow. PPS LED not bright when GPS is not fixed, flashing when fixed
- TX LED: blue. TX LED flashes when there is data output, otherwise it is not bright
For more details and to purchase, visit the original product page: HGLRC M100-5883 GPS
