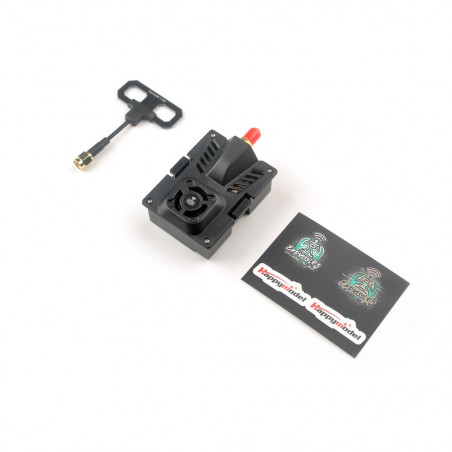

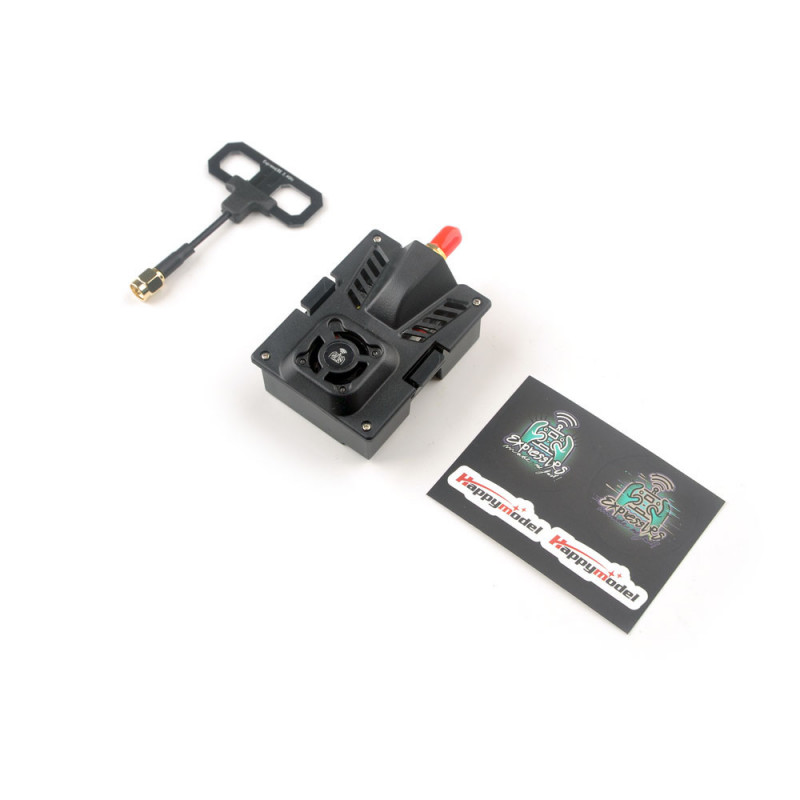

HappyModel ES24TX Pro 1W 2.4GHz ExpressLRS Micro TX Module with Cooling Fan & RGB LED
ê 230.00
ê 195.50
Save 15%
Delivery to Dubai in 2-3 days, other emirates, 3-5 days
The HappyModel ES24TX Pro is a high-performance 2.4GHz ExpressLRS Micro TX module, delivering up to 1000mW of output power for exceptional long-range FPV flights. It features an integrated cooling fan, customizable RGB LED, a high-gain Moxon antenna, and supports a wide 5V-12V input, making it a top choice for serious FPV enthusiasts.
HappyModel ES24TX Pro 1W 2.4GHz ExpressLRS Micro TX Module
Experience unparalleled long-range performance and reliability with the HappyModel ES24TX Pro, a high-power 1000mW 2.4GHz ExpressLRS Micro TX module. Designed for FPV pilots demanding the best, this module integrates advanced features for a superior connection.
Key Features:
- High Output Power: Up to 1000mW (30dBm) for exceptional range and signal penetration.
- ExpressLRS Firmware: Built on the powerful and open-source ExpressLRS system, offering low latency and high refresh rates.
- Efficient Cooling: Integrated 20mm x 20mm x 7mm cooling fan (10000rpm) ensures stable performance even at high power outputs.
- RGB LED Module: Customizable RGB LEDs for status indication and aesthetic appeal.
- High-Gain Antenna: Includes a 4.18dBi Moxon antenna for optimal signal transmission.
- Wide Voltage Input: Supports 5V-12V input via XT30 connector (2S or 3S LiPo recommended).
- Micro JR Bay Compatibility: Designed to fit standard Micro JR bays on compatible radio controllers.
- ESP Backpack Function: Features an auxiliary ESP8285 for ESP Backpack functionality.
- Durable Housing: Comes in a slim and robust Pro TX module housing with CNC aluminum alloy case.
Specifications:
| Brand: | HappyModel |
| Model: | ES24TX Pro |
| Regulatory Domain: | ISM2400 |
| MCU: | ESP32 (main), ESP8285 (aux, as ESPbackpack) |
| RF Chip: | SX1281IMLTRT |
| JR Bay: | Micro standard |
| Frequency Range: | 2400 MHz to 2500 MHz |
| Maximum Receive Refresh Rate: | 500Hz |
| Minimum Receiver Refresh Rate: | 25Hz |
| RF Output Power: | ≤30dBm (Max 1000mW) |
| Input Voltage: | DC 5V~12V (XT30 connector) |
| Peak Power Consumption: | ~2W (at 1000mW output, excluding fan) |
| Weight: | 51g (without antenna) |
| Dimensions: | 70mm x 49mm x 34mm (without antenna) |
| Antenna Gain: | 4.18dBi (Moxon Antenna included) |
| Firmware Target: | HappyModel_ES24TX_Pro_Series_2400_TX |
| Cooling Fan: | Size: 20mm x 20mm x 7mm, Speed: 10000rpm, Voltage: 3V |
Package Includes:
- 1 x HappyModel ES24TX Pro Micro TX module
- 1 x HappyModel 2.4GHz Moxon Antenna
- 1 x RGB LED Module (pre-installed)
- 1 x CNC Aluminum Alloy Case (pre-installed)
- 1 x Antenna Adapter Cable
- 1 x Connection Wire Set
Notes:
- Ensure your radio controller is compatible with Micro JR bay modules.
- Always attach the antenna before powering on the module to prevent damage.
- Update to the latest ExpressLRS firmware for optimal performance and features. The firmware can be updated via Wi-Fi.
- The RGB LED is controlled by the auxiliary ESP8285 and can be customized.
The ES24TX Pro module is a significant upgrade for any FPV pilot looking to push the boundaries of range and link quality. Its robust design, combined with the power of ExpressLRS, makes it a top choice for freestyle, long-range, and racing applications.
HM-ES24TXPRO-1W-V1
