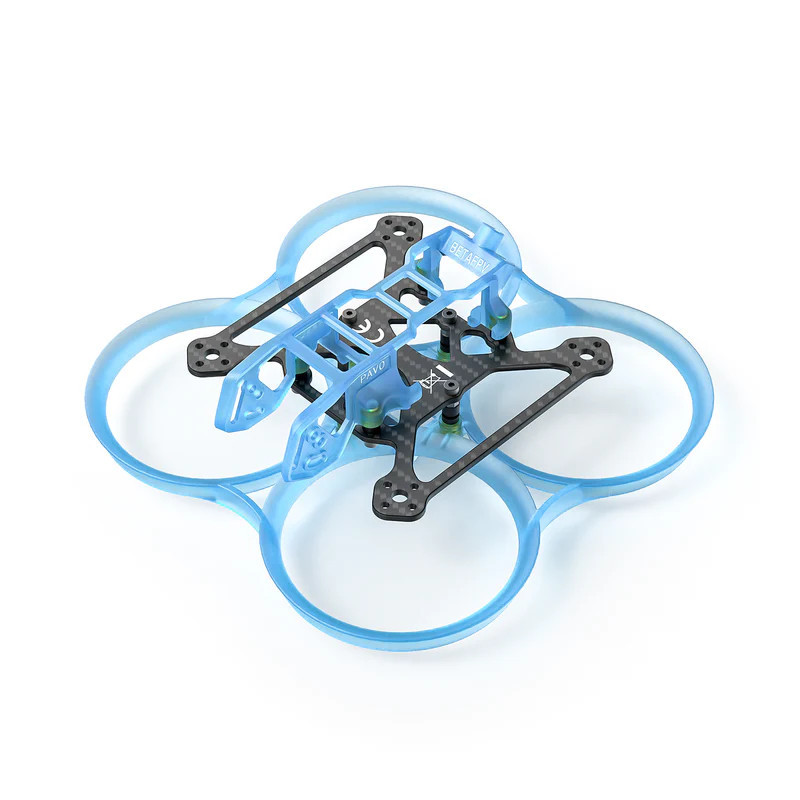

BETAFPV Pavo20 Pro Brushless Whoop Frame Kit

BETAFPV Pavo20 Pro: The Ultimate 2" Cinewhoop Frame

Introducing the Pavo20 Pro Brushless Whoop Frame, the lightest 2'' whoop frame on the market, designed for unparalleled performance and durability. Engineered with an innovative rocket-inspired duct design and constructed from robust PA12 material, this frame offers exceptional thrust, stability, and ease of assembly. It's the perfect platform for building a sub-250g FPV cinewhoop, fully compatible with the latest HD digital VTX systems like the DJI O3 Air Unit.

Key Features

• Feather-Light Champion: The lightest 2'' whoop frame available, weighing in at just 26.7g, making it ideal for sub-250g builds.
• Rocket-Inspired Aerodynamics: The unique whoop duct design, inspired by rocket engines, optimizes aerodynamic efficiency for increased thrust and a more stable flight experience.
• Unmatched Durability: Constructed from high-quality PA12 material, known for its exceptional impact resistance and durability, ensuring your frame can withstand tough flights.
• HD Digital VTX Ready: Seamlessly integrates with popular HD systems including the DJI O3 Air Unit, Walksnail Avatar HD Pro, and HDZero, with dedicated mounting options.
• Simplified Assembly: A minimalist design that requires only 6 screws for full assembly, getting you in the air faster.
• Enhanced Camera Protection: Features a side-mounted carbon fiber plate to safeguard your FPV camera during impacts. The new camera mount supports easy installation for 19mm/20mm cameras.

Specifications

• Item: Pavo20 Pro Brushless Whoop Frame
• Wheelbase: 90mm
• Frame Material: PA12
• Color: Black
• Weight: 26.7g
• Motor Mounting: 3-M1.4-φ6.6mm
• Flight Controller Mounting: 26×26mm
• FPV Camera Installation Size: 20mm (compatible with 19mm)
• VTX Mounting: 20×20mm / 25.5×25.5mm

Recommended Parts (Not Included)

• Flight Controller: F4 2-3S 20A AIO FC V1
• Motors: 1103 | 8500KV Brushless Motor
• Propellers: Gemfan 2015 2-Blade Propellers
• Battery: 2S 450mAh - 650mAh LiPo
• HD VTX Systems: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista HD Digital VTX, RUNCAM Link, HDZero Whoop Lite Bundle
• Camera Filter: BETAFPV UV/ND Filter for DJI O3 Camera

In the Box

• 1 * Pavo20 Pro Frame
• 1 * Pavo20 Pro Top Plate
• 1 * VTX Mounting Plate
• 1 * FPV Camera Mount
• 1 * Bottom LED Strip (COB)
• 1 * Battery Strap
• 1 * DJI O3 Antenna Mount
• 1 * DJI O3 VTX Mounting Plate
• 4 * Copper Pillars
• 1 * Screw Package
