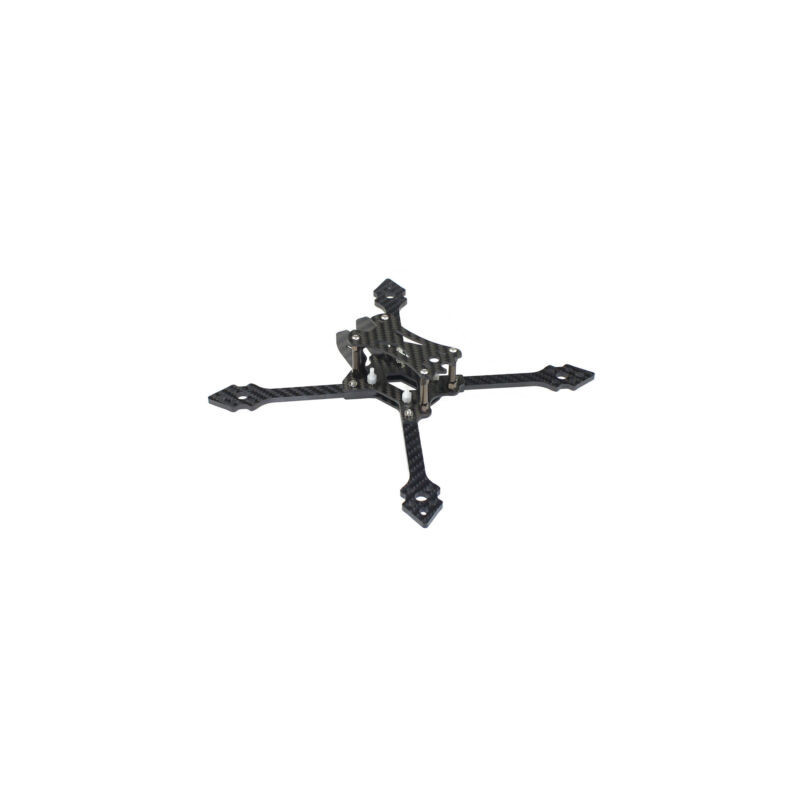

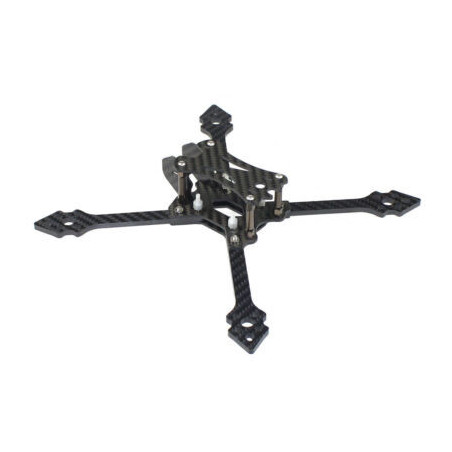

FPV Racing X220 220mm Carbon Fiber FPV Racing Drone Frame Kit

Build Your Ultimate 5-Inch FPV Drone

The Feichao X220 is a high-performance, durable, and lightweight FPV racing frame designed for pilots who demand speed and agility. With a 220mm wheelbase, this frame strikes the perfect balance for both competitive racing and acrobatic freestyle flying. Constructed from high-quality 3K carbon fiber, it's engineered to withstand the inevitable crashes and tumbles of high-speed FPV flight.

Its classic True-X layout ensures symmetrical balance and predictable handling, making tuning and flying a more intuitive experience. The robust 4mm arms provide exceptional rigidity and crash resistance, while the 2mm body plates keep the overall weight to a minimum. The frame offers ample space to mount a standard FPV camera and all your essential electronics, making it a versatile choice for your next build.

Key Features:

• Full 3K Carbon Fiber Construction: High-strength and lightweight for maximum performance.
• 220mm Wheelbase: Ideal size for 5-inch propellers, offering a great balance of stability and agility.
• Durable 4mm Arms: Removable arms designed to resist damage from hard impacts.
• True-X Configuration: Provides balanced weight distribution for predictable flight characteristics.
• Spacious Build Area: Ample room for standard flight controllers, ESCs, and FPV gear.
• Lightweight Design: Weighing in at approximately 138g, it helps maximize flight time and performance.

Specifications:

• Brand: Feichao
• Model: X220
• Wheelbase: 220mm
• Material: 3K Carbon Fiber
• Arm Thickness: 4mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Standoff Height: 30mm
• Weight: Approx. 138g

Recommended Components (Not Included):

• Flight Controller: F3 / F4 / Naze32 / CC3D (30.5x30.5mm mounting holes)
• Motors: 2204 / 2205 / 2206 / 2305 / 2306
• ESCs: 20A - 30A
• Propellers: 5-inch (e.g., 5045, 5050)
• Battery: 3S 1300mAh - 4S 1500mAh LiPo
• FPV Camera: Standard size FPV camera

Package Includes:

• 1 x Feichao X220 220mm Frame Kit (Unassembled)
• 1 x Set of Screws and Standoffs
