SpeedyBee Mario 5 DC PRO 5-Inch FPV Freestyle Drone Frame (O3/O4 Compatible)

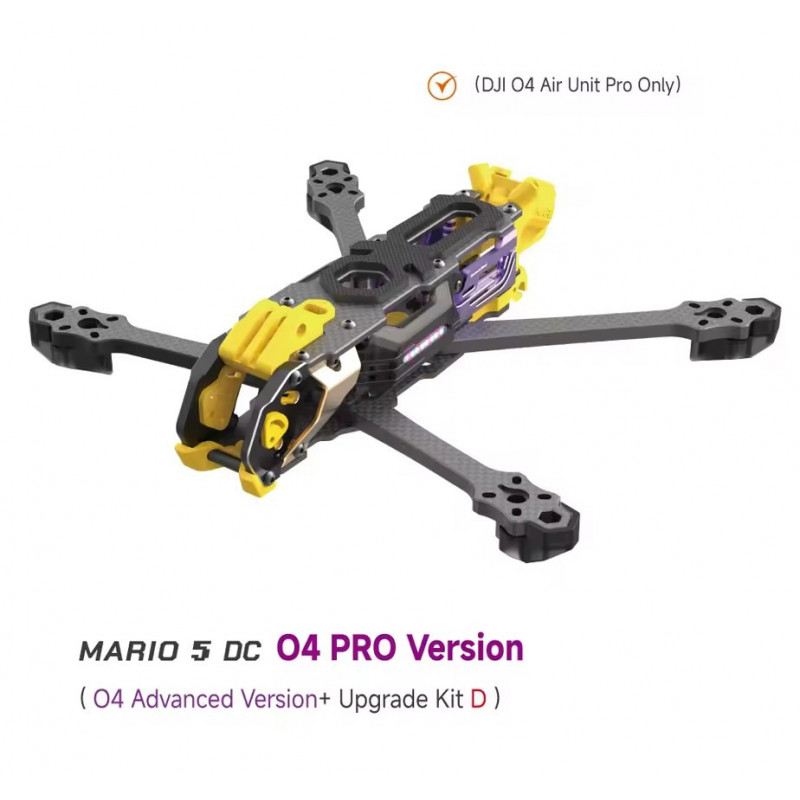

SpeedyBee Mario 5 DC 5-Inch PRO FPV Freestyle Frame

Experience top-tier freestyle performance with the SpeedyBee Mario 5 Frame. Designed for the modern FPV pilot, this 5-inch frame utilizes a popular Dead Cat (DC) geometry, keeping props out of view for cinematic and immersive flight footage, especially when using HD systems like the DJI O3 or O4 PRO.

Key Features:

• Durable Construction: Crafted from high-quality T300 3K carbon fiber for excellent rigidity and crash resistance.
• Freestyle Optimized Geometry: Dead Cat (DC) layout provides a clear camera view, ideal for freestyle and cinematic flying.
• HD VTX Ready: Specifically designed with ample space and mounting options for DJI O3 Air Unit and compatible with the newer O4 PRO systems.
• Versatile Mounting: Supports both 20x20mm and 30.5x30.5mm flight stacks, offering flexibility for your component choices.
• Thoughtful Design: Includes features for a clean build, such as dedicated VTX/RX mounting and wire management considerations.

Specifications:

• Product Name: SpeedyBee Mario 5 DC Frame Pro
• Wheelbase: 226mm (approx.)
• Frame Style: Dead Cat (DC)
• Arm Thickness: 5.5mm (approx.)
• Top Plate Thickness: 2.5mm (approx.)
• Bottom Plate Thickness: 2.5mm (approx.)
• Middle Plate Thickness: 2.5mm (approx.)
• Camera Mounting: Compatible with 19/20mm width cameras
• VTX Mounting: 20x20mm (M2), 25.5x25.5mm (M2), 30.5x30.5mm (M3)
• Stack Mounting: 20x20mm (M3) & 30.5x30.5mm (M3)
• Material: T300 3K Carbon Fiber
• Estimated Weight: 130g (frame only, approx.)
• Recommended Motor Size: 22xx, 23xx series
• Recommended Prop Size: 5 - 5.1 inch

Whether you're building a new freestyle rig or upgrading an existing one, the SpeedyBee Mario 5 DC frame provides a robust, well-designed platform ready for the latest FPV technology.
