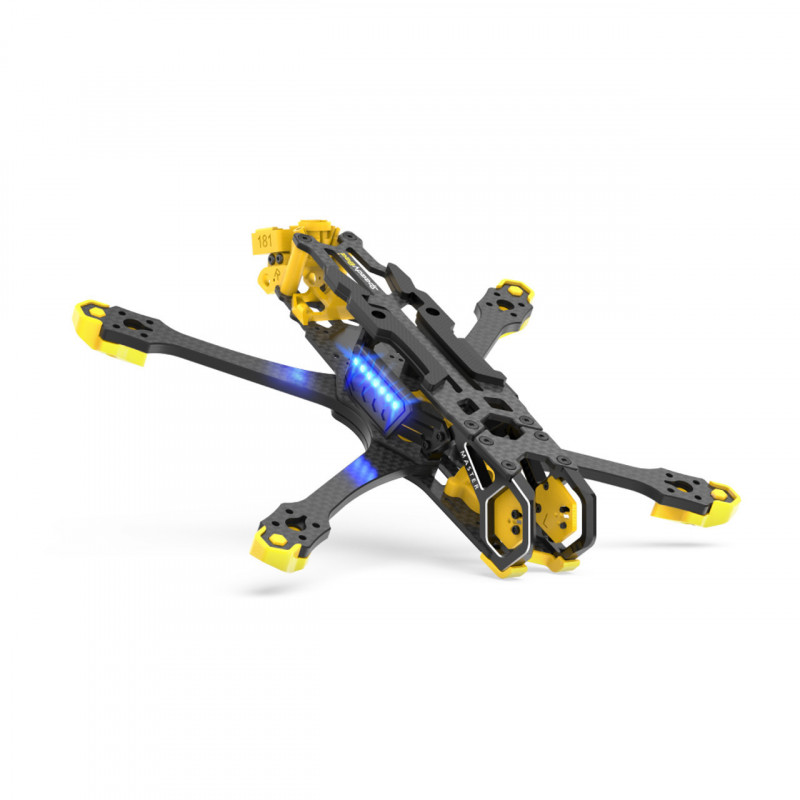

SpeedyBee Master 5 V2 Frame Kit

The Master 5 V2 is a high-performance 5-inch FPV freestyle frame designed for durability, versatility, and ease of maintenance. Featuring a unique quick-release arm mechanism and compatibility with various digital and analog VTX systems, this frame is a top choice for FPV pilots of all levels.

Key Features:

• Quick Release Arm Design: Replace arms easily with just two screws.
• Wide VTX Compatibility: Supports DJI O3/Link/Vista/Analog/HDZero.
• Adjustable Camera Mount: Customize your camera angle from 25° to 50°.
• High-Quality Carbon Fiber: Constructed with T300 4K carbon fiber for strength and lightness.
• Aluminum Alloy Side Plates: CNC machined for a premium look and feel.
• 30.5x30.5 & 20x20 Mounting Holes: Accommodate a wide range of electronics.
• Multiple Battery Mounting Options: Top or bottom mount your battery.
• Comes with various accessories For a complete build.

Specifications:

• Wheelbase: 226mm
• Weight: 128g (±5g)
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Arm Thickness: 5.5mm
• Camera Side Plate: Aluminum Alloy
• Arm Quick-release screws: M3*18mm
• Max Stack Height: 23mm
• Max VTX Height: 20mm
• FC Mounting Holes: 30.5x30.5mm / 20x20mm (M3)
• Motor Mounting: 16x16mm (M3)
• VTX Mounting: 25.5*25.5(M2) / 20*20mm (M3)
• Carbon Fiber Material: T300 4K
• Capacity of Battery: 4S-6S Lipo
• Camera Mount Spacing: 19-20mm

Package Includes:

• Full set of Frame parts
• Screws and hardware
• 3D Printed Parts
• Battery Straps
• Detailed parts list included in the original webpage

For more details and a full list of included parts, please visit the original product page: SpeedyBee Master 5 V2 Frame
